Centreless Grinding Machine Supplier in Gujarat

Industrial manufacturing in Gujarat continues to expand across automotive, engineering, aerospace, medical, and general fabrication sectors. As production volumes increase and dimensional tolerances become tighter, the demand for reliable grinding solutions has grown steadily. A centreless grinding machine supplier in Gujarat plays a significant role in supporting precision component manufacturing by delivering machines engineered for accuracy, repeatability, and long-term operational stability.

Centreless grinding technology is widely used for cylindrical components that require consistent surface finish and dimensional control without the need for centers. Industries in Ahmedabad, Vadodara, Rajkot, Surat, and nearby industrial regions depend on precision grinding systems to maintain quality standards and production efficiency.

Scarlo Machines, established in 1976, manufactures centreless grinding machines designed for industrial performance. With decades of experience in mechanical design and manufacturing processes, the company emphasizes structural rigidity, spindle stability, efficient lubrication systems, and controlled infeed mechanisms to achieve consistent grinding results.

Understanding Centreless Grinding Machines

A centreless grinding machine is designed to grind cylindrical workpieces without holding them between centers or chucks. Instead, the workpiece is supported by a work blade and positioned between a grinding wheel and a regulating wheel. This configuration enables continuous material removal and supports high-volume production while maintaining dimensional precision.

Unlike conventional cylindrical grinding, centreless grinding eliminates workholding alignment requirements. This reduces setup time and improves production speed. The process is commonly used for shafts, pins, bushes, bearing components, hydraulic parts, and precision rods where concentricity and surface finish are critical.

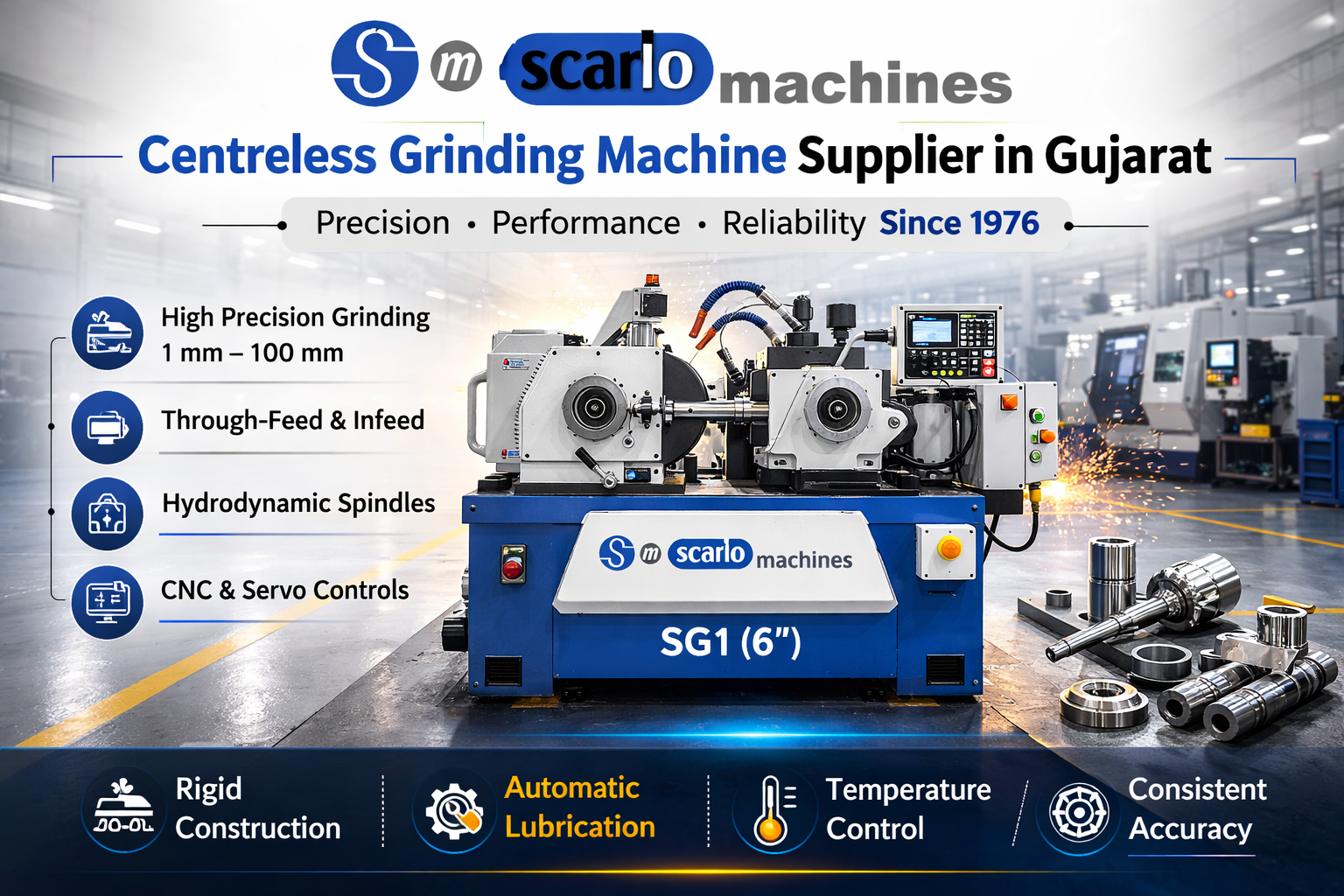

Scarlo Centreless Grinding Machine Model SG1 (6")

The SG1 (6") model is engineered for controlled precision grinding across a range of industrial applications. With a grinding range of 1 mm to 100 mm and compatibility for both through-feed and infeed grinding, the machine supports flexible production requirements.

The grinding wheel operates at peripheral speeds up to 33 or 45 meters per second (optional), driven by a 15 HP grinding wheel motor. The regulating wheel offers a variable speed range of 0 to 210 RPM with a 3 HP motor, allowing controlled feed rates and stable operation.

The machine is constructed on a one-piece rugged casting that houses the grinding wheel spindle. Hydrodynamic Babbitt bearings at both ends ensure spindle stability, while continuous lubrication systems protect internal assemblies. Ceramic-coated spindles and automatic oil temperature cut-off mechanisms further enhance operational reliability.

Precision Engineering and Structural Stability

Machine rigidity is essential in centreless grinding operations. The SG1 model incorporates a heavy-duty base casting and antifriction slide systems to reduce vibration and maintain dimensional accuracy. Turcite coating between slide systems minimizes friction, ensuring smooth and precise infeed movement.

The infeed lower slide feed graduation of 0.02 mm on standard machines and 0.001 mm on servo-controlled variants enables fine adjustment for tight tolerances. High-precision ground ball screws support controlled axis movement, improving repeatability during extended production runs.

Spindle and Lubrication Systems

The performance of a centreless grinding machine depends significantly on spindle stability and lubrication efficiency. The SG1 machine includes continuous lubrication for both spindles with dry-run protection to safeguard critical components. An air-cooled heat exchanger maintains spindle oil temperature during prolonged operation.

Automatic lubrication systems for slide ways and truing units reduce manual intervention and help ensure consistent performance. The automatic spindle oil temperature cut-off mechanism prevents overheating and protects the integrity of the grinding system.

Grinding and Regulating Wheel Design

The grinding wheel size of 400 x 150 x 228.6 mm and regulating wheel size of 230 x 150 x 101.6 mm are configured for precision applications. The regulating wheel tilt angle ranges from 0 to +5 degrees, supporting controlled feed movement and taper correction.

The machine features advanced dressing systems with diamond advance least counts of 0.02 mm and 0.001 mm in servo variants. Swivel-type regulating wheel truing units operate independently from regulating wheel swivel mechanisms, enabling accurate profiling and consistent wheel conditioning.

Applications of Centreless Grinding Machines

Centreless grinding machines are widely used in industries that require high-precision cylindrical components. Typical applications include:

• Automotive shafts and transmission components
• Bearing and bush manufacturing
• Hydraulic piston rods and pins
• Medical instrument components
• Aerospace cylindrical parts
• Precision fasteners and tooling elements

The combination of through-feed and infeed grinding enables manufacturers to handle both continuous production and specialized component finishing with efficiency.

Industrial Demand in Gujarat

Gujarat’s industrial clusters across Ahmedabad, Rajkot, and Vadodara support strong engineering and automotive manufacturing ecosystems. Small and medium enterprises, along with large-scale manufacturers, rely on centreless grinding machines for finishing precision components.

The presence of heavy engineering, pump manufacturing, and precision machining industries has increased the need for stable and accurate grinding equipment. Machines equipped with temperature control, automated lubrication, and antifriction systems are preferred for maintaining quality standards in high-volume production environments.

Optional Features and Process Enhancements

For specialized applications, the SG1 machine supports optional configurations such as AC inverter drives, constant cutting speed up to 45 m/sec, hydro-pneumatic feed attachments, automatic balancing units, and coolant filtration systems.

These enhancements allow manufacturers to adapt grinding parameters to different materials and production volumes while maintaining dimensional consistency and process stability.

Operational Efficiency and Power Management

With a total peak power consumption of 20 HP and a machine weight of approximately 4000 kg, the SG1 is engineered for stable shop-floor performance. The integrated coolant system with a 100 LPM displacement capacity supports effective heat removal during grinding cycles.

Servo-controlled infeed systems, precision ball screws, and antifriction linear bearings in dresser assemblies contribute to smoother operation and reduced friction losses.

Why Precision Matters in Centreless Grinding

Surface finish, roundness, and dimensional accuracy directly influence component performance. In automotive and hydraulic systems, even minor deviations can lead to premature wear or reduced efficiency. A structurally rigid machine with controlled infeed and consistent spindle lubrication helps ensure repeatable output quality.

Centreless grinding machines designed with temperature monitoring and automated lubrication systems minimize maintenance interruptions and enhance long-term reliability.

Future Trends in Centreless Grinding Technology

Industrial automation and CNC integration are gradually transforming the grinding industry. CNC and PLC variants equipped with precision ground ball screws and servo motor-driven axes offer programmable accuracy and reduced operator dependency.

Manufacturers in Gujarat are increasingly seeking grinding machines that integrate advanced control systems while maintaining mechanical robustness. Hybrid solutions that combine structural strength with modern electronic control are becoming more prevalent in precision engineering environments.

Conclusion

Centreless grinding machines play an essential role in precision manufacturing across Gujarat’s industrial landscape. As demand for accurate cylindrical components continues to rise across automotive, engineering, and process industries, robust grinding solutions remain vital for maintaining quality and consistency.

Machines such as the SG1 model are engineered with rigid castings, advanced spindle systems, antifriction slide mechanisms, and controlled infeed technology to deliver dependable grinding performance. For manufacturers in Gujarat seeking stable and precise finishing solutions, centreless grinding technology remains a key element of modern industrial production.
